POWERING THE FUTURE: THE IMPERATIVE OF ELECTRIFICATION AND SUSTAINABLE PRACTICES
With emission regulations on the horizon, companies must determine how they will attain compliance within their fleets, while ensuring that the work they do can still be accomplished. Infrastructure is lacking in response to environmental regulations to adequately support electric-powered equipment. Additional challenges include increased equipment purchase and maintenance costs.

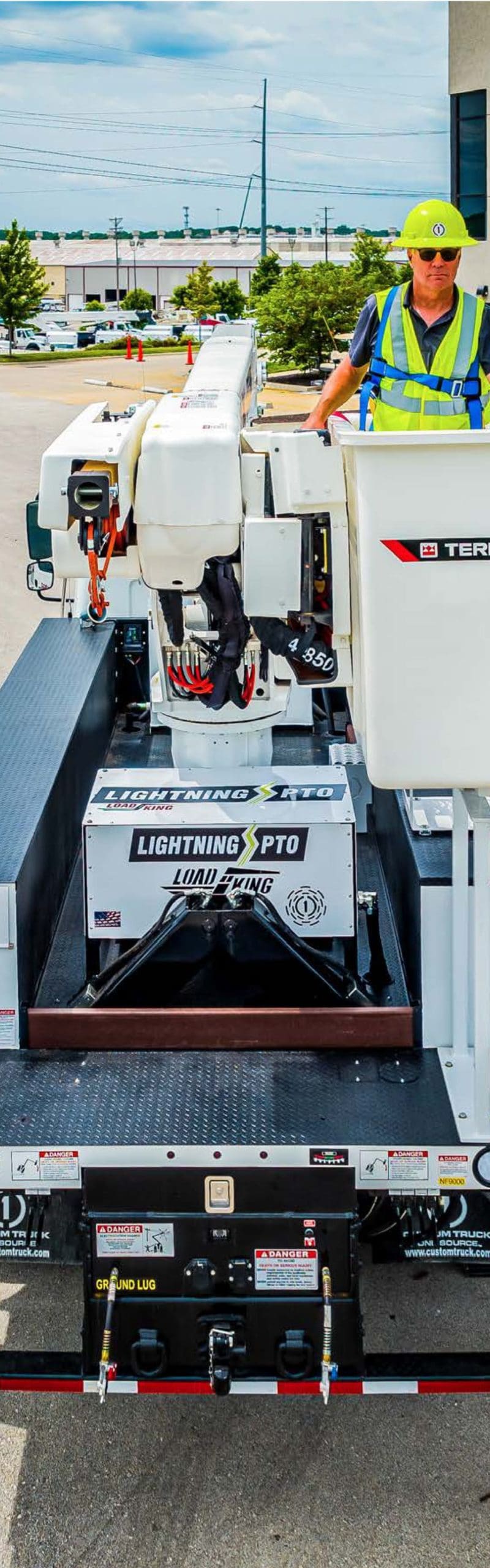

INNOVATIVE RESOLUTION: UNVEILING THE LIGHTNING PTO BY LOAD KING
The Lightning PTO, an electronic power take-off (PTO), drives the hydraulic system responsible for operating utility equipment. Integrating the Lightning PTO into utility equipment enables the truck engine to run solely during the transportation between jobs, leading to reduced diesel emissions.
Calculate your ESTIMATED Idling COSTS:
Lightning PTO Key Benefits:
Achieving Annual Diesel Fuel Savings of Up to 2,000 Gallons
Attaining an Annual Reduction of Up to 44.6 Tons of CO2 Emissions
Compliant with Government’s 5-Minute Idle Restrictions
Cost-Effective Maintenance: Slashing Truck Maintenance Expenses by Up to 69%
Enhanced Component Longevity: Minimizing Hydraulic Oil Movement for Prolonged Lifespan of Hoses, O-Rings, Valves, and Other Vital Components
Enhanced Jobsite Safety: Achieving a Remarkable 85% Reduction in Noise Levels Compared to Standard PTOs
Ease of Use:
- Full, on-demand Lightning PTO engagement, fully controlled from the aerial platform™
- Improves run-time by 29% compared to other systems
- Key switch, PTO switch, & master switch are continually on while using Lightning PTO
- Easy switching between Lightning PTO & regular PTO
- Built-in converter allows operator to keep truck key on while using Lightning PTO
- Charges Truck Batteries
- Fully hybrid redundant system
Charging Lightning PTO Batteries:
- Charges Using Standard 110AC Outlet
- 5-Hour Charge Time (Full Charge)
- Standard Charge While Driving Feature Achieves 1% Charge for Every 5-Minutes of Driving Time
Installation & Support:
- Installs on New & Existing Fleet of Equipment for All Major Brands
- Terex
- Versalift
- Altec
- Parts Readily Available Through Load King Service Network
Telematics & Reporting:
- Standard Telematics with 3-Year Paid Subscription
- Reports Fuel Savings
- Reports CO2 Emissions Reduction
- Reports Maintenance Savings
- Customer Portal – Lightning PTO Benefit Tracking & Reports for Individual Units & Entire Fleet
Lightning PTO Specifications:
BASE UNIT MODELS:
5kWh
7kWh
10kWh
14kWh
Available for:
60’ or smaller Bucket Trucks
and
60’ Series or smaller Digger Derricks
BATTERY CAPACITY:
10 kWh
Hydraulics
Output Pressure:
Max 3,000 PSI
Flow Rate:
Max 14 GPM
Control Valve:
Output Checked: Adjustable Internal Relief (3,000 PSI)
Suction Port:
Female JIC – 16 Quick Connect
Pressure Port:
Female JIC – 12 Quick Connect
Power
Current Rating:
Max 350A @ 48VDC
Battery Info
Technical Spec:
(2) 48VDC 5 kWh Battery
BMS:
Integrated
Operating Temperature Range:
-4F to +140F / -20C to +60C
IPX Rating:
IP66 + Pressure Wash
CHARGING (0-100%)
Recharge Time (1000W Default):
8 Hours
2000W Charger (Add-On Option):
4 Hours
DIMENSIONS & WEIGHT
Length:
43 inches
Width:
24 inches
Weight:
457 pounds
Height:
19 inches
USER INTERFACE
5” display with full diagnostics, digital gauges, battery usage, percent, motor temperature
