4,000 lbs 15,000 ft of 5/8" rope Four Drum Puller

806-2400
4,000 lbs 15,000 ft of 5/8" rope Four Drum Puller
4,000 lbs 15,000 ft of 5/8" rope Four Drum Puller
4,000 lbs 15,000 ft of 5/8" rope Four Drum Puller
4,000 lbs 15,000 ft of 5/8" rope Four Drum Puller
4,000 lbs 15,000 ft of 5/8" rope Four Drum Puller
4,000 lbs 15,000 ft of 5/8" rope Four Drum Puller

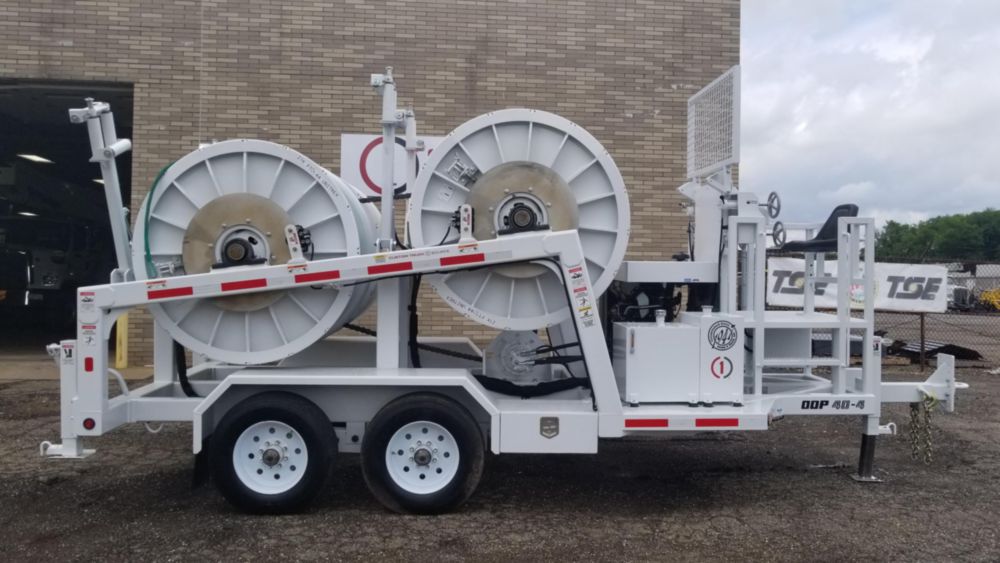

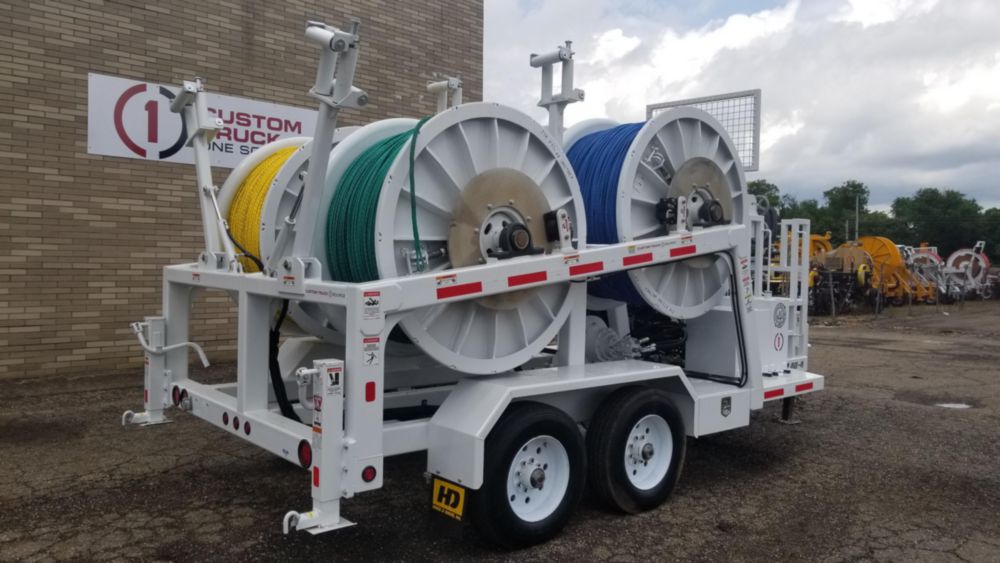

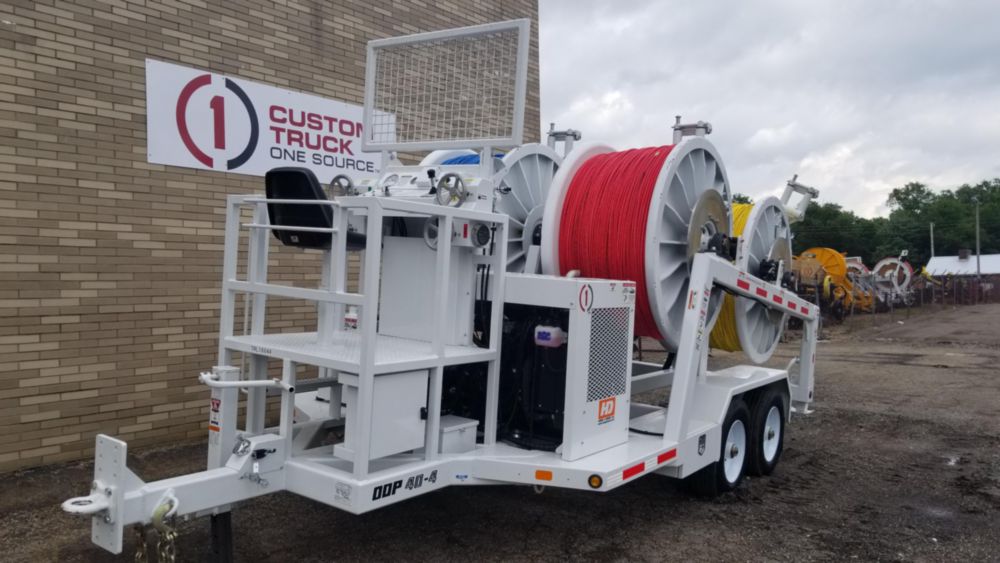

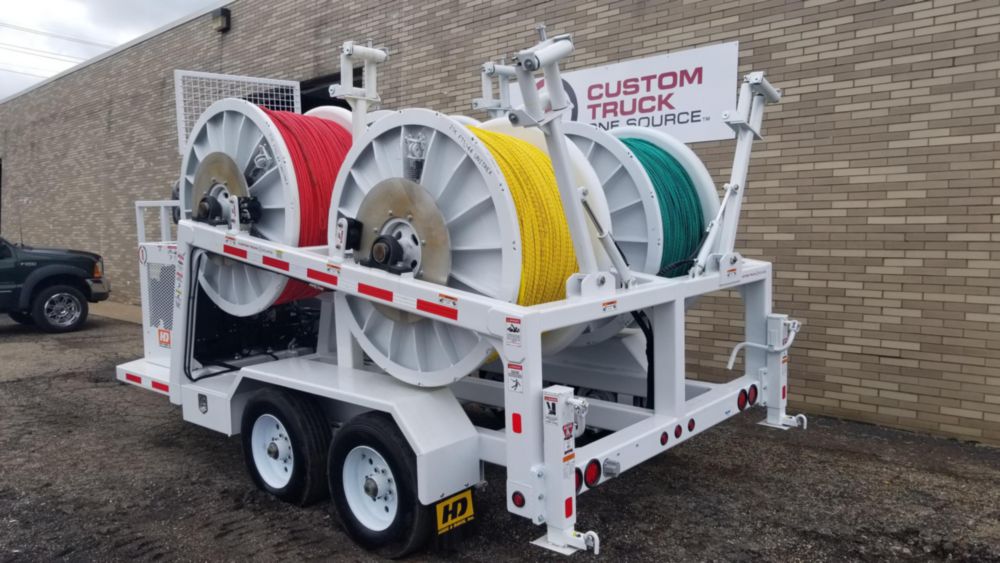

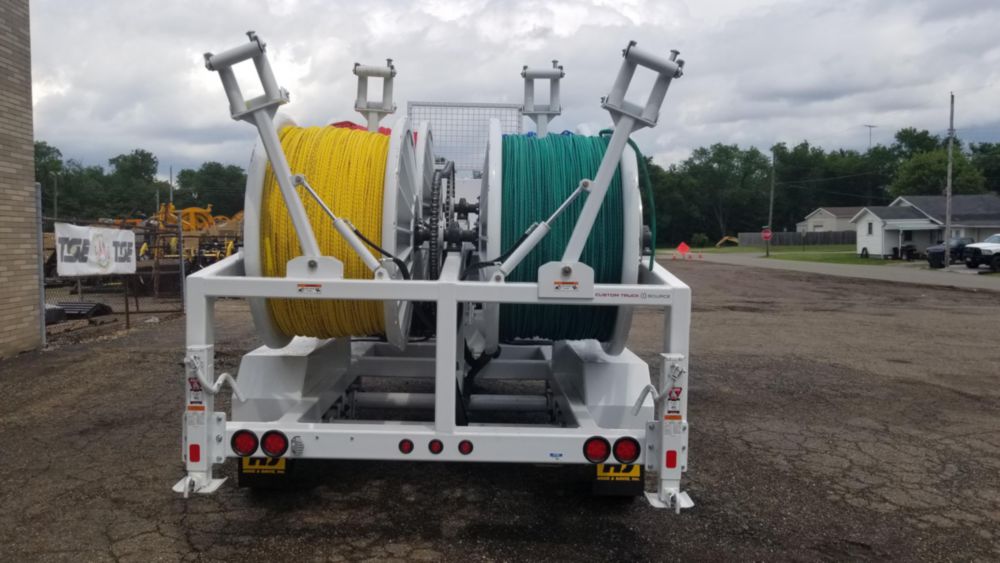

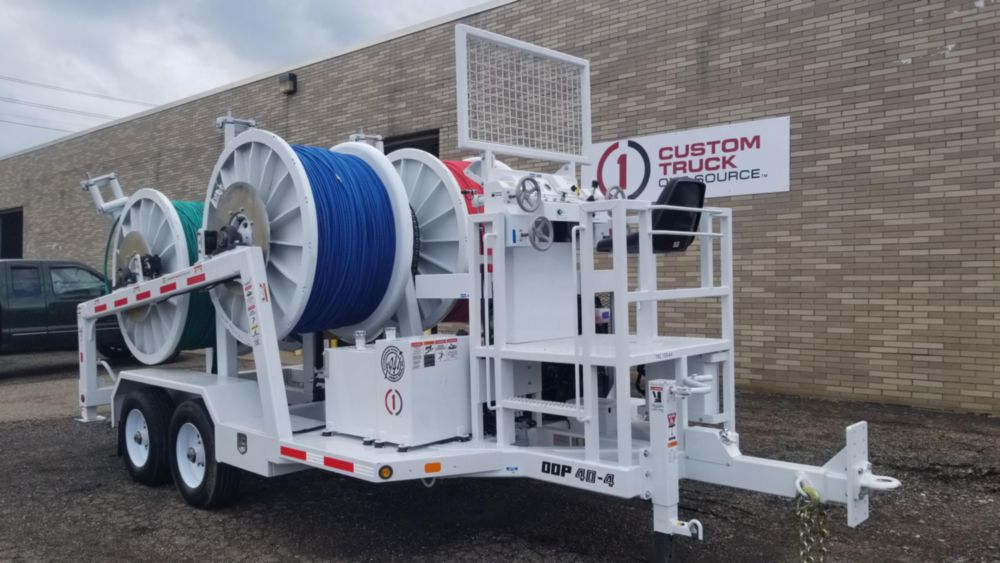

The Hogg & Davis ODP 40-4 HRC (High 15K Rope Content) four drum puller is capable of a line pull of 4,000 lbs. on a single drum. Each drum can be disengaged or engaged for single or multi-drum pulling. Also included on each drum is an overspin brake with a hydraulic actuator. Operator controlled post style levelwind allows for even winding of rope. All unit functions are centrally located at the operators station.

Pricing:

Specifications

Drum Diameter:
48 in
Drum Width:
31 in
Max Pulling Capacity:
4,000 lbs
Max Reel Capacity:
15,000 ft of 5/8" rope
Overall Length:
22'4"
Overall Width:
8'6"
Turret Base:
No

Documents:

Operators Manual:
bookmarkHogg Davis ODP30 4bookmarkHogg Davis ODP40 4 HRC
Spec Sheet:
bookmarkHogg Davis ODP40 4XP 15000
